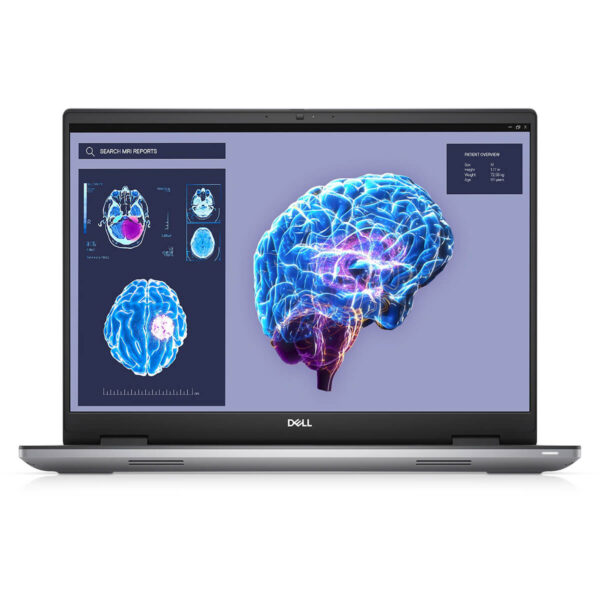

DELL Precision 7680 Mobile Workstation (2023)

The DELL Precision 7680 Mobile Workstation (2023) is Dell's 16-inch mobile workstation, built for engineers, architects, 3D artists and developers who run demanding software all day. It runs on 13th Gen Intel Core HX-series processors with vPro, paired with a range of professional NVIDIA RTX Ada graphics options or the GeForce RTX 4090, plus up to 128GB of DDR5 RAM. This article covers the design, display, performance, connectivity and the trade-offs to weigh before choosing a configuration.

Dell Precision 7680 Design: A Sturdy Metal Chassis With True Workstation Character

The Dell Precision 7680 features a gray aluminum chassis with squared-off edges, slim display bezels and a Dell logo centered below the screen. Its clean, no-nonsense look fits an engineering office just as well as a client meeting.

The laptop weighs 2.67kg and measures 25.05 to 27.45mm thick, 356mm wide and 258.34mm deep. Those are the dimensions of a 16-inch workstation housing an HX CPU and discrete graphics, so it suits a fixed desk setup, while still traveling to job sites or business trips when needed. If you are looking for a Dell laptop for long-term technical graphics work, the Precision line is well worth considering.

Dell Precision 7680 16-Inch 16:10 Display With FHD+ or Touch OLED UHD+ Options

The Dell Precision 7680 offers three 16-inch, 16:10 display options, all anti-glare with a 60Hz refresh rate. The base FHD+ (1920 x 1200) panel delivers 250 nits of brightness without touch. The upgraded FHD+ panel reaches 500 nits and covers 100% of the DCI-P3 color gamut. The OLED UHD+ (3840 x 2400) panel adds touch, 400 nits of brightness and 100% DCI-P3 coverage.

The 16:10 aspect ratio adds vertical space, fitting more toolbars in AutoCAD and Revit or more of a video timeline than a 16:9 screen. The 250-nit FHD+ panel is fine for indoor use and gives longer battery life; if you do color grading, photo work or video editing, choose the 500-nit DCI-P3 panel or the OLED UHD+ for more accurate color and finer detail.

Precision 7680 Performance With 13th Gen Intel Core HX, RTX Ada Graphics and Up to 128GB of DDR5

The Dell Precision 7680 comes with three CPU options: the Core i5-13600HX with 14 cores and 20 threads, the Core i7-13850HX with 20 cores, 28 threads and up to 5.3GHz, and the Core i9-13950HX with 24 cores, 32 threads and up to 5.5GHz. The configurations sold in our store use the Core i7-13850HX or the Core i9-13950HX, both with vPro for remote management and security in a business setting.

Source: average scores from Notebookcheck. Scores for the i5-13600HX and i7-13850HX are based on few test samples and are for reference only; real-world results depend on the power mode and ambient temperature.

All three chips score around 16,000 in Geekbench 6 multi-core, enough for coding, running virtual machines, CAD modeling and data processing. The Core i9-13950HX adds 4 more cores and 36MB of cache, making it worth choosing if you often render on the CPU or compile large projects; for 2D CAD, BIM and programming, the Core i7-13850HX strikes the balance between price and performance.

On the graphics side, the configurations on sale come with the NVIDIA RTX A1000 6GB or RTX 1000 Ada 6GB, RTX 2000 Ada 8GB, RTX 4000 Ada 12GB, RTX 5000 Ada 16GB and GeForce RTX 4090 16GB. The lineup also offers the RTX 3500 Ada 12GB and Intel UHD integrated graphics.

Source: average scores from Notebookcheck. Scores for the RTX 4000 Ada and RTX 5000 Ada are based on few test samples and depend on each laptop's power level; 3DMark is a gaming benchmark, so it does not fully reflect the VRAM and professional driver advantages of RTX Ada cards.

The RTX A1000 suits 2D CAD, moderate 3D modeling and Full HD video editing. The RTX 2000 Ada and RTX 4000 Ada are a good fit for Revit, SolidWorks, Blender and 4K video editing, while the RTX 5000 Ada with 16GB of VRAM is meant for large models, simulation and AI. The GeForce RTX 4090 version posts high 3DMark scores in this list and suits GPU rendering and AI; if your software requires a professional RTX card, choose an RTX Ada version.

The DELL Precision 7680 Mobile Workstation (2023) uses DDR5 5600MHz RAM in 32GB, 64GB and 128GB options; the configurations on sale have 32GB or 64GB, enough for heavy multitasking, while 128GB is for simulation and very large datasets. The PCIe Gen4 M.2 SSD comes in 512GB, 1TB, 1.5TB and 2TB capacities; for large projects, choose 1TB or more, or upgrade the SSD later.

Keyboard With Numeric Keypad, Large Touchpad, 8W Speakers and 1080p Webcam on the Dell Precision 16 7680

The Dell Precision 16 7680 has a full-size keyboard with a dedicated numeric keypad, handy for data entry, spreadsheets and shortcuts in engineering software. The touchpad sits at the center of the palm rest, offers a generous surface and supports multi-finger gestures for scrolling, zooming and switching windows.

The stereo sound system uses four 2W speakers for 8W in total, clear enough for video calls and video playback. The FHD 1080p 30fps webcam comes with an omnidirectional microphone and a proximity sensor, delivering sharper video calls than the common 720p webcam.

Dell Precision 7680 Ports and Battery: Thunderbolt 4, HDMI 2.1, RJ45 and a 93Wh Battery

The Dell Precision 7680 offers 2 Thunderbolt 4 (USB-C) ports, 1 USB 3.2 Gen 2 Type-C port with DisplayPort support, 2 USB 3.2 Type-A ports (1 with PowerShare), 1 HDMI 2.1 port wired to the discrete GPU, 1 RJ45 Ethernet port, an SD card slot and a headphone/microphone combo jack. You can connect an external monitor, an external drive, a wired network and a mouse at the same time without an adapter.

Wireless connectivity comes from an Intel Wi-Fi 6E AX211 card with 6GHz band support and Bluetooth 5.3, stable when working with data over the network or on video calls. The laptop ships with Windows 11 Pro.

The 93Wh Lithium-Ion battery is among the larger ones in 16-inch machines. Still, the HX CPU and discrete GPU draw a lot of power, so when rendering or running simulations you should keep the laptop plugged in to maintain performance; for writing and video calls, lowering the brightness and choosing a power-saving mode will help the battery last longer.

DELL Precision 7680 Mobile Workstation (2023) Overview and Review

The DELL Precision 7680 Mobile Workstation (2023) is a 16-inch workstation with 13th Gen Intel Core HX processors, graphics ranging from the RTX A1000 to the RTX 5000 Ada or the GeForce RTX 4090, up to 128GB of DDR5 RAM and all the ports engineering professionals need. It suits engineers, architects, 3D artists, video editors and developers who need a machine that runs reliably for years.

The main trade-off is the 2.67kg weight, which makes it better suited to desk work than carrying around all day; a well-padded 16-inch backpack makes travel easier. The base 250-nit FHD+ panel is best for indoor use, so for color work choose the 500-nit or OLED version. Battery life drops quickly under heavy loads, so plug in when rendering. You can explore other configurations in the Dell Precision 16 category.
